A New Breed of Center Console Catamaran
Representing a decisive step forward in performance center consoles, the 430 Tigress delivers the rough-water ride and stability of a catamaran without sacrificing the comfort of an overnight cabin with standing headroom. The innovative hull design effortlessly swallows up chop and swells, while the spacious interior offers plenty of room for entertaining and impresses with Statement’s signature style and attention to detail. And with your choice of Mercury power packages up to 2,000 hp and endless opportunities for customizations, the spec’ing your own Tigress is almost as much fun as getting behind the wheel.
Pioneering Hull Design

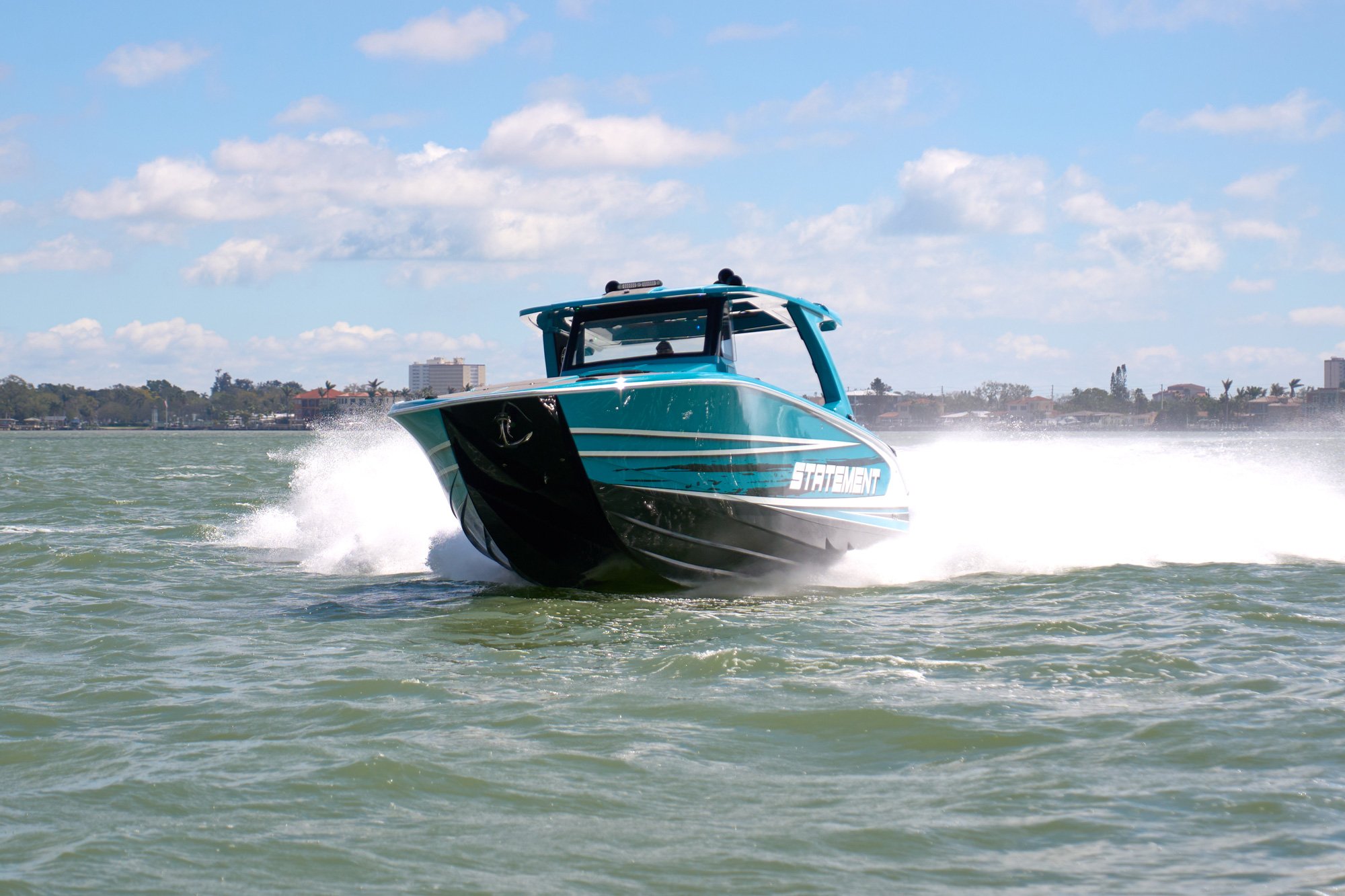

A completely original design, the 430 Tigress’ twin-stepped, asymmetrical catamaran hull delivers an exceptionally smooth rough water ride at any speed and leans predictably into turns like a V-bottom.
Aggressive lines and pronounced flare forward make her unmistakable on the water, while a carefully tuned level running attitude improves efficiency and comfort.
tigress specs
45'6"
LOA
12'0"
BEAM
600G
FUEL (std)
800G
FUEL (opt)
3'0"
DRAFT
Want to Sleep Over?
A first among center console catamarans, the 430 Tigress features a midships cuddy cabin with stand-up headroom, large berth, abundant natural light, and a separate head compartment with sink and shower. Access is via sliding acrylic door in the console to port of the steering wheel. Air conditioning and a TV can be added for surprisingly comfortable overnight accommodations.
design highights
A first-generation departure from conventional center console design, the Tigress 430 is the result of a painstaking three-year development process in which nothing was taken for granted.
Three-Wide Cockpit Lounge
Although a number of helm-seating configurations are available — including a second row and cockpit-facing wet bar — most owners will opt for the huge, three-across aft lounge seat with folding armrests and cup holders. Thanks to the 430’s incredible ride quality, the lounge is comfortable at most speeds, even in chop. At the console, contoured bolster seats accommodate three more, while four seats line the transom — two on either side of a center walkthrough.
State-of-the-Art Helm Station
At the console, an expansive dash panel accommodates a pair of 22” displays with plenty of room left for a sliding cabin access door to port. Full digital switching and instrumentation provide a clean, minimalist look. An integrated acrylic windscreen with powder-coated aluminum frame blocks wind and spray, while innovative fiberglass “wings” can be folded out from either side of the helm station for added comfort at higher speeds.
Massive Arch-Style Hard Top
Among the 430’s most visually distinctive features is a massive, full-width molded hard top that provides plenty of mounting real estate for a variety of speaker sizes and styles. Mounting locations for LED spreader lights are molded in, and a large panel above the helm can accommodate flush-mounted VHF radios, audio head units and smaller MFDs. A retractable electric cockpit shade can be integrated into the aft edge.
Smart Storage Everywhere
Storage is everywhere on the 430, from convenient port and starboard dock line lockers in the forward gunnels (left) to two cavernous dry storage compartments and two well insulation coolers under the cockpit lounge seat (right). Under the deck are four monster lockers that can be used as general bulk storage or as fish boxes. At the transom, two more hatches access large compartments that can be as dry storage or plumbed as livewells.
Stand-up Head with Sink and Shower
A common complaint about catamarans is that they lack the interior volume required for a standup head. That’s not true of the 430, though, which features a spacious step-down compartment with marine toilet, freshwater sink and shower, a small window, and six feet of headroom. The interior is fully finished fiberlass with foam decking and is accessed via the same acrylic sliding access door as the cuddy cabin.
Your Choice of Mercury Power
The 430 Tigress’ incredible rough-water ride doesn’t come at the expense of speed. Any of three available Mercury power packages — quad 500Rs, quad Verado 400s, or twin Verado 600s — yields thrilling performance. Standard 600-gallon fuel tanks or optional 800-gallon tanks also provide plenty of range for multi-day runs.
tigress gallery
specifications
LOA: 45’6” (13.87m)
Beam: 12’0” (3.66m)
Draft: 3’0” (0.91m)
Dry hull weight: 16,900 lbs. (7,666 kg)
Fuel capacity: 600 gallons (2,271 l)/800 gallons (3,028 l)
Freshwater capacity: 28 gallons (106 l)
Bridge clearance: 9’6” (2.90 m)
Power options: Twin or quad outboards from 1,200 to 2,000 hp
standard features
Deck and Cockpit
- Self-bailing cockpit with integrated scupper system (?)
- Nonskid deck and gunwales (?)
- All stainless steel hardware
- (5) pull-up cleats — 1 forward, 2 midships, 2 aft (?)
- Low-profile, recessed stainless bow rail
- Full cockpit wraparound coaming bolsters
Console
- Leather-wrapped stainless steel steering wheel
- Full digital switching and instrumentation
- Large electronics mounting area
- 1/2” acrylic wraparound windshield with powder-coated aluminum frame
- Stainless steel cup holders (2)
- Grab handle
- Sliding acrylic cabin/head entry door
- Fully finished fiberglass hard top with courtesy and spreader lighting
- Three-position bolster helm seat with folding armrests and cup holders
Seating
- Twin two-position transom bench seats with center walk-through
- Full-width bow bench seating
- Two-position forward console seating with folding center armrest, cup holders, and grab handles
Storage
- Overboard-draining, recessed bow anchor locker
- Port and starboard recessed dock line lockers in forward gunnels
- Four large sealed and drained under-deck lockers
- Two large dry storage compartments in transom
Electrical
- Heavy duty marine batteries
- Heavy duty battery trays
- Battery switches with circuit breakers
- Dual, high-volume automatic bilge pumps
- Integrated LED navigation lights
- LED lighting
- Forward and aft spreader lights
- Overhead courtesy lights
- Cockpit courtesy lights
- Electric, recessed horns with stainless grilles
Mechanical
- Stainless steel high-performance propellers
- Full hydraulic steering
- Mercury Racing K-Plane trim tabs with actuators
options & customization
For more details on the many options and customizations available see our Design Center page.
Power
- Quad Mercury Racing 500R V8
- Quad Mercury Verado 400 V10
- Twin Mercury Verado 600 V12
Paint & Finishes
- Painted hullsides, console, hardtop accents, and pin
- Custom paint, "mild to wild"
- Color-matched engines
- Powdercoat package
- EVA flooring
- EVA top
- Alcantara interior accents
- Alcantara full interior
Seating & Convenience
- Three-position bolster helm seat w/ wet bar
- Three-position bolster helm seat w/ rear-facing lounge (includes two large dry storage areas and two coolers under lounge)
- Second-row bolster helm seat
- Second-row bolster helm seat w/ wet bar
- Powered SureShade cockpit sunshade
- Removable cockpit table
- Drink holder, LED (6)
- Drink holder, Yeti (2)
Electrical & Mechanical
- Lithium batteries
- On-board battery charger
- Additional deep-cycle house battery
- Generator
- Transom freshwater shower
- Raw water washdown
- Freshwater washdown (additional)
- Windlass package w/ Delta stainless steel anchor, striker plate, rope, chain
- Light bar
- Underwater LED transom/tunnel lighting
- LED windshield accent lighting
Electronics & Audio
- Dual Garmin 8622 MFDs
- Garmin radar
- Nite Track infrared
- Autopilot interface
- Level 1 audio system — AM/FM/Bluetooth w/ remote, (20) 6.5" LED speakers, (4) 12" LED subs and amps
- Level 2 audio system — AM/FM/Bluetooth w/ remote, (20) M2 6.5" LED speakers, (6) M2 12" LED subs and amps
- Full custom audio system
- (4) Beach Tower speakers on hardtop w/ amp
- Sirius satellite radio
- Mercury VesselView
Fishing
- Fishing transom — aft livewell w/ seat
- Under-gunnel racks for (8) rods
- Flush-mount stainless rod holders
- Flush-mount stainless combination rod/cup holders
- Convert under-deck lockers to fishboxes with macerator pumps
Miscellaneous
- Long-range fuel tanks (800 gallons total)
- Tender tow setup
- Shrink wrap
